Game Boy MBC5 Cartridge (Type A, FRAM)

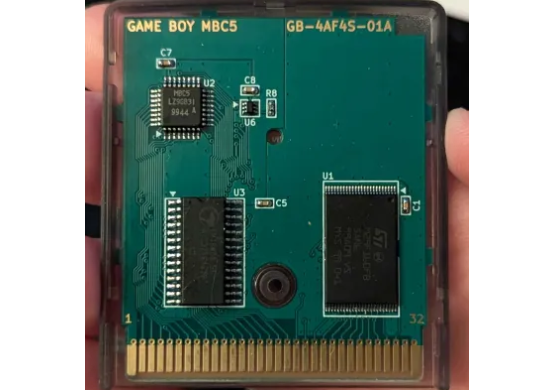

A flashable MBC5 Game Boy cartridge that uses the M29F160 and FRAM. I suggest using this board for non-Game Boy Color games.
I made this specifically for use with the Super Game Boy Plus boards: https://github.com/MouseBiteLabs/Super-Game-Boy-Plus/tree/main
Please read the GitHub (linked below) for more information.
Thickness must be 0.8mm.
Edge should be beveled by 30 degrees or more.
Surface finish must be ENIG or Hard Gold.
Schematic and Layout
Game Boy MBC5 (Type A, FRAM) Cartridge
https://github.com/MouseBiteLabs/Game-Boy-Cartridges/tree/main/MBC5%20(Type%20A%2C%20FRAM)
Sep 26,2024
7 views

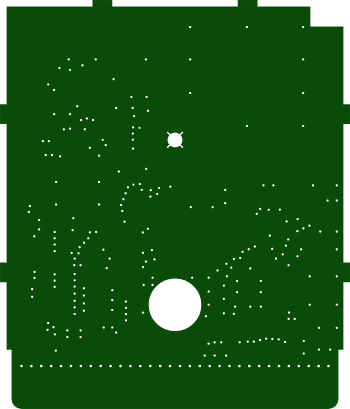

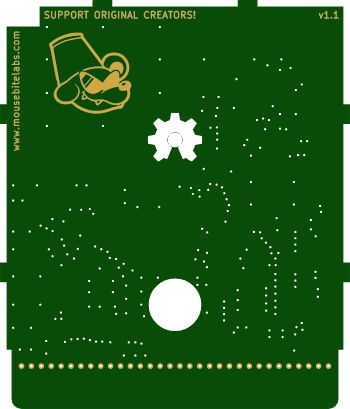

Game Boy MBC5 Cartridge (Type A, FRAM)
2 Layers PCB 31.9 x 10.7 mm FR-4, 0.8 mm, 1, Immersion gold, Green Solder Mask, White silkscreen
A flashable MBC5-based cartridge for the Game Boy that uses FRAM. Recommended for non-GBC games.
7
0
0
Published: Sep 26,2024
Download Gerber file 1
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
File Last Updated: 2024/09/26 (GMT+8)
File update record
2024-09-2617:28:17
Parts List (BOM) is updated.
Only PCB
PCB+Assembly
*PCBWay community is a shared platform and we are not responsible for any design issues.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
- Comments(0)
- Likes(0)
You can only upload 1 files in total. Each file cannot exceed 2MB. Supports JPG, JPEG, GIF, PNG, BMP
0 / 10000
More by Nick
-
Game Boy MBC5 Cartridge (Type A, FRAM)
A flashable MBC5 Game Boy cartridge that uses the M29F160 and FRAM. I suggest using this board for n...
-
Super Game Boy Plus
This is the Super Game Boy Plus, or SGB+. It is a circuit board that allows you to enhance an origin...
-

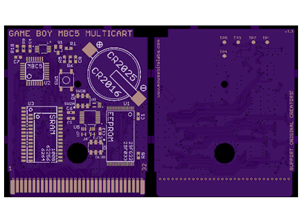

Game Boy MBC5 Multicart
YOU MUST ORDER WITH ENIG FINISH AT 0.8MM THICKNESS!This is my design of a flashable MBC5-based multi...
-
Game Boy MBC3 Multicart
YOU MUST ORDER WITH ENIG FINISH AT 0.8MM THICKNESS!This is my design of a flashable MBC3-based multi...
-
Game Boy MBC5 Cartridge
YOU MUST ORDER WITH ENIG FINISH AT 0.8MM THICKNESS!This is my design of a flashable MBC5-based cartr...
-

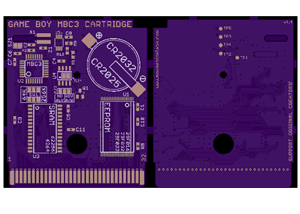

Game Boy MBC3 Cartridge
YOU MUST ORDER WITH ENIG FINISH AT 0.8MM THICKNESS!This is my design of a flashable MBC3-based cartr...
-

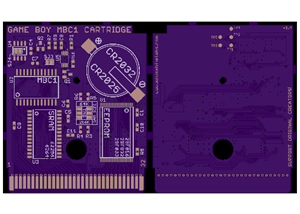

Game Boy MBC1 Cartridge
YOU MUST ORDER WITH ENIG FINISH AT 0.8MM THICKNESS!This is my design of a flashable MBC1-based cartr...
-

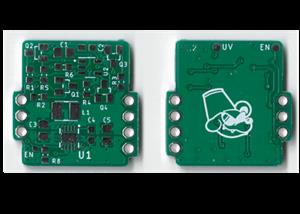

Pocket Mouse Power Board
This board was made primarily for my Pocket Color project (MGBC-MBL-01). The Pocket Color is a Game ...
-
Game Boy Pocket Color (MGBC-MBL-01): Half-silkscreen version
Thickness must be 1.0mm! If you do not plan to use tactile buttons, you must order ENIG finish! Plea...
-
Game Boy Pocket Color (MGBC-MBL-01): Solid color version
Thickness must be 1.0mm! If you do not plan to use tactile buttons, you must order ENIG finish! Plea...
-
Game Boy DMG Color (DMGC-HDP-01)
Please review information in the GitHub repo!!This is the HDP (headphone) board (one of four PCBs) f...
-
Game Boy DMG Color (DMGC-PWR-01)
Thickness must be 1.2mm or less! Please review information in the GitHub repo!!This is the PWR board...
-
Game Boy DMG Color (DMGC-IPS-01)
Thickness must be 1.2mm! Please review information in the GitHub repo!!This is the IPS board (one of...
-

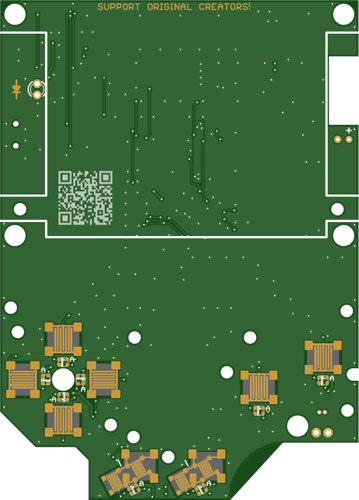

Game Boy DMG Color (DMGC-CPU-01)
