Description
External Dual VR Conditioner
External dual channel signal conditioner based on Maxim MAX9926, for use with VR crankshaft and/or camshaft sensors with indicator LEDs to show that its powered.
Board Size 32mmx24mm.
Schematic :

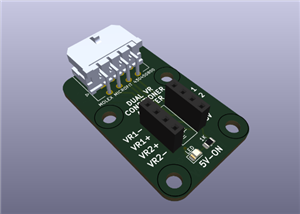

Top Side :
Bottom :
Molex Microfit (MPN : 430450800 ) Header Pin Out :
Schematic and Layout
Schematics
VR Conditioner External.pdf
Sep 18,2024
